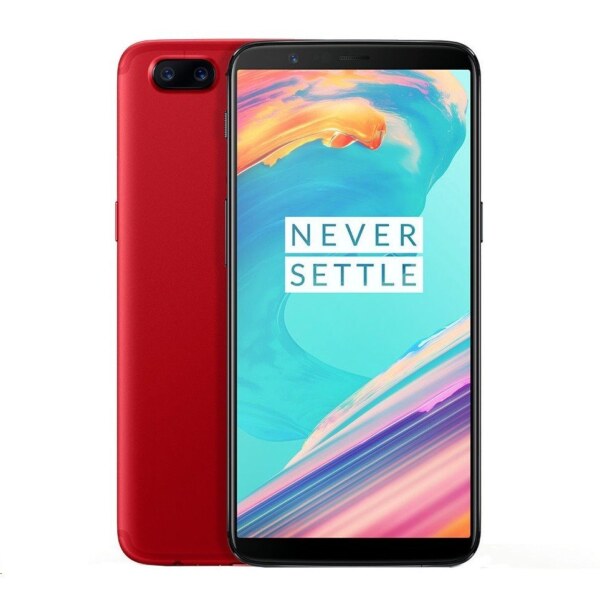

The OnePlus 5T features a 6.01-inch Optic AMOLED display with a resolution of 2160 x 1080 pixels and an 18:9 aspect ratio. It is powered by the Qualcomm Snapdragon 835 processor, paired with either 6GB or 8GB of LPDDR4X RAM. Storage options include 64GB or 128GB of UFS 2.1 internal memory, without support for expandable storage.
The device runs on OxygenOS based on Android 7.1.1 Nougat, with updates available to later versions. It is equipped with a 3,300mAh non-removable battery that supports Dash Charge fast charging technology. The phone includes a rear dual-camera setup consisting of a 16MP primary sensor with an f/1.7 aperture and a 20MP secondary sensor, also with an f/1.7 aperture, designed to improve low-light performance and depth effects. The front-facing camera is a 16MP sensor with an f/2.0 aperture.
For biometric security, the OnePlus 5T uses a rear-mounted fingerprint sensor. connectivity options include dual SIM support, 4G LTE, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0,NFC,and GPS with GLONASS. Sensors on the device include an accelerometer, gyroscope, proximity sensor, compass, and ambient light sensor.
the phone’s chassis is constructed from aluminum, and it retains a 3.5mm headphone jack.It supports USB Type-C for charging and data transfer. the OnePlus 5T combines a high-performance chipset with a large AMOLED display and dual cameras, targeting users who require a balance of speed and multimedia capabilities.
Technology | GSM / HSPA / EVDO / LTE |
2G Network Bands | GSM 850 / 900 / 1800 / 1900 |
3G Network Bands |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - North America - HSDPA 850 / 900 / 1900 / 2100 - Global model - CDMA2000 1xEV-DO - North America |
4G Network Bands |
LTE band 1(2100), 2(1900), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 17(700), 30(2300) - North America - LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800), 38(2600), 40(2300) - Global model |
Speed | HSPA 42.2/5.76 Mbps, LTE-A (2CA) Cat6 300/50 Mbps |
Also Known As |
- - |
Dimensions | 156.1 x 75 x 7.3 mm (6.15 x 2.95 x 0.29 in) |
Weight | 162 g (5.71 oz) |
Build | Front glass, aluminum frame & back |
SIM Type | Dual SIM (Nano-SIM, dual stand-by) |
Display Type | Optic AMOLED capacitive touchscreen, 16M colors |
Size | 6.01 inches, 93.7 cm2 (~80.0% screen-to-body ratio) |
Resolution | 1080 x 2160 pixels, 18:9 ratio (~401 ppi density) |
Operating System | Android 7.1.1 (Nougat), upgradable to Android 9.0 (Pie); OxygenOS 5.1.4 |
Chipset | Qualcomm MSM8998 Snapdragon 835 (10 nm) |
CPU | Octa-core (4x2.45 GHz Kryo & 4x1.9 GHz Kryo) |
GPU | Adreno 540 |
RAM + ROM | 6/8 GB |
Card Slot | No |
Camera Type | Double Lenses |
Camera Sensor(s) | 16 MP + 20 MP dual front-facing cameras |
Camera Features |
Main sensor: f/1.7, 24mm (wide), 1/2.8", 1.12µm, PDAF Secondary sensor: 20 MP, f/2.6, 36mm (standard), 1/2.8", 1.0µm, 1.6x optical zoom, AF |
Video Resolution | 2160p@30fps, 1080p@30/60fps, 720p@30/120/480fps, Auto HDR |
Camera Type | Single Lens |
Camera Sensor(s) | 16 megapixel |
Camera Features | HDR, Panorama, f/2.2 aperture |
Video Resolution | 1080p@30fps |
Loudspeaker | Yes |
Speaker Location | Chin, blow the screen |
Audio Jack Type | Yes, 3.5mm audio jack |
Bluetooth | Bluetooth 5.0, A2DP, LE, aptX HD |
NFC | |
GPS | Yes, with A-GPS, GLONASS |
FM Radio | No |
Battery Capacity | Non-removable Li-Po 3300 mAh battery |
Wireless Charging | No |
Talk Time Talk Time is the longest time that a single battery charge will last when you are constantly talking on the phone under perfect conditions, Ambient temperature and highly dependent on the cellular network environment such as the distance to the closest cell network tower. | Up to 28 hours |
Stand-by | Up to 480 hours |
Sensors | Fingerprint (side-mounted), accelerometer, proximity, compass |
Box Contents | Charging Brick / USB cable |
Note: Specifications may not be 100% accurate.
